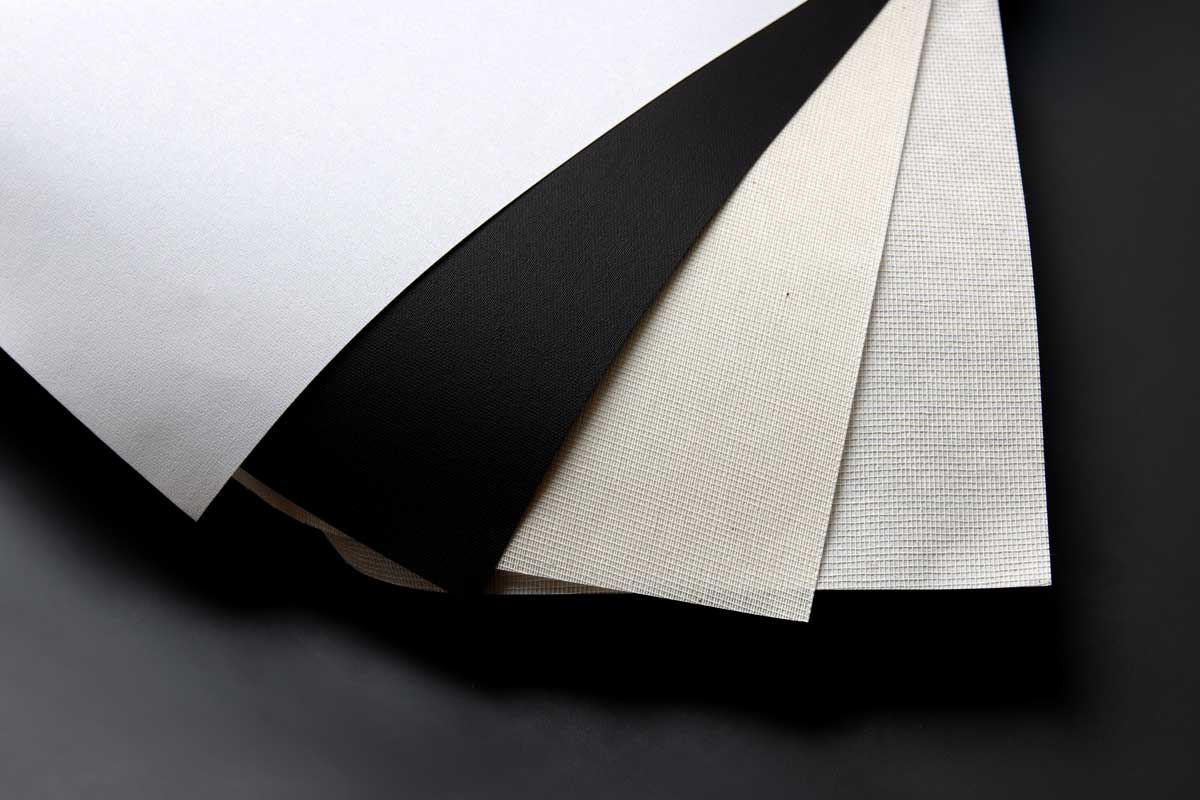

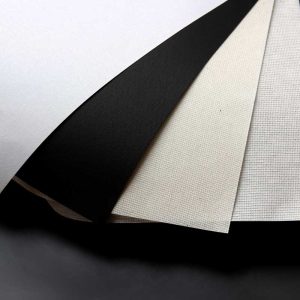

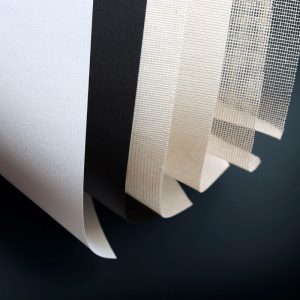

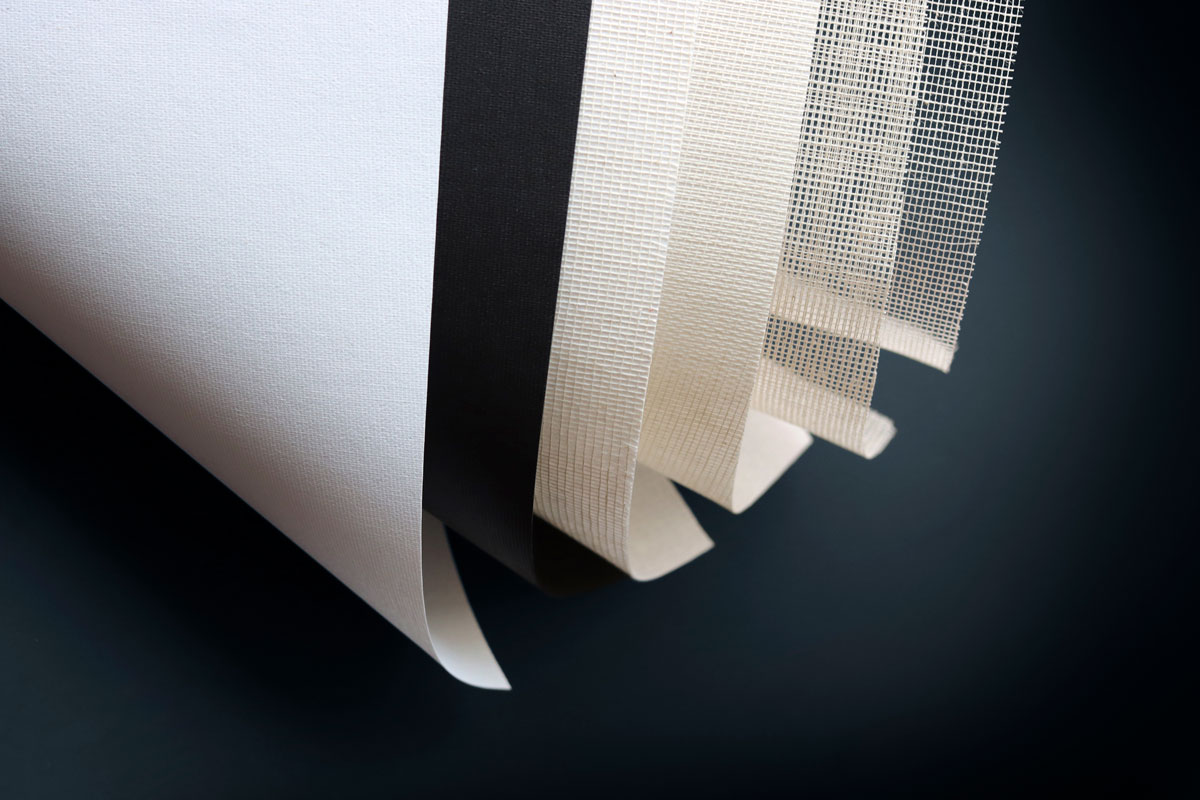

Gaas & shirting for spine reinforcement

Our Gaas, also known as bookbinding gauze, mull, or scrim, is an open-weave cotton fabric used for strengthening and fixing book spines. It is available in two open variants, both of which are also offered with paper backing.

Shirting is a treated, dense, and flexible cotton fabric used to reinforce and protect books. It binds the cover to the endpapers, strengthens the spine, and prevents the pages from detaching from the book block.

Both Gaas and Shirting provide high folding endurance and tensile strength, making them ideal not only for spine reinforcement but also as hinge materials for large sample books.

We provide six types of spine reinforcement materials to suit diverse needs:

  • Beta & Beta Lined
    Lined is FSC certified and backed with 100% recycled acid-free paper

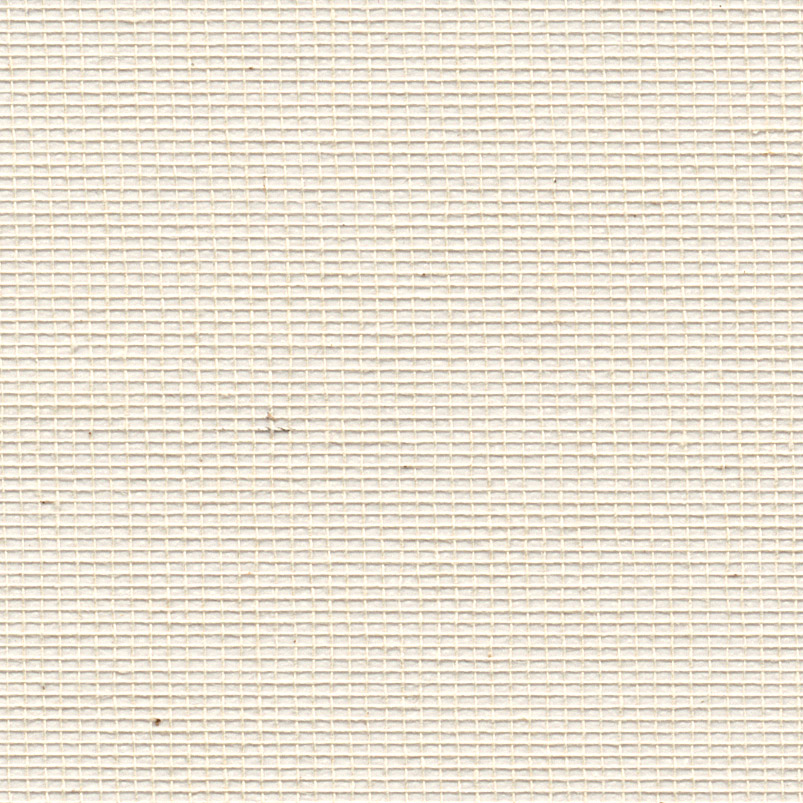

  • Ypsilon & Ypsilon Lined
    Lined is FSC certified and backed with 100% recycled acid-free paper
  • Shirting 700 (white)

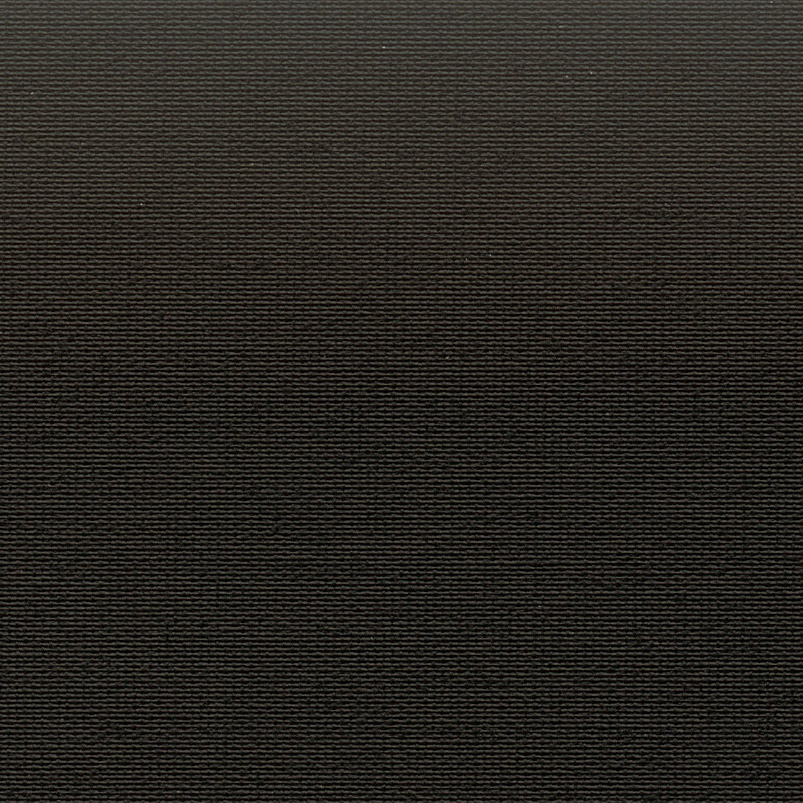

  • Shirting 708 (black)


Each material is crafted for maximum durability, ensuring books retain stability and longevity.

gaas & shirting options

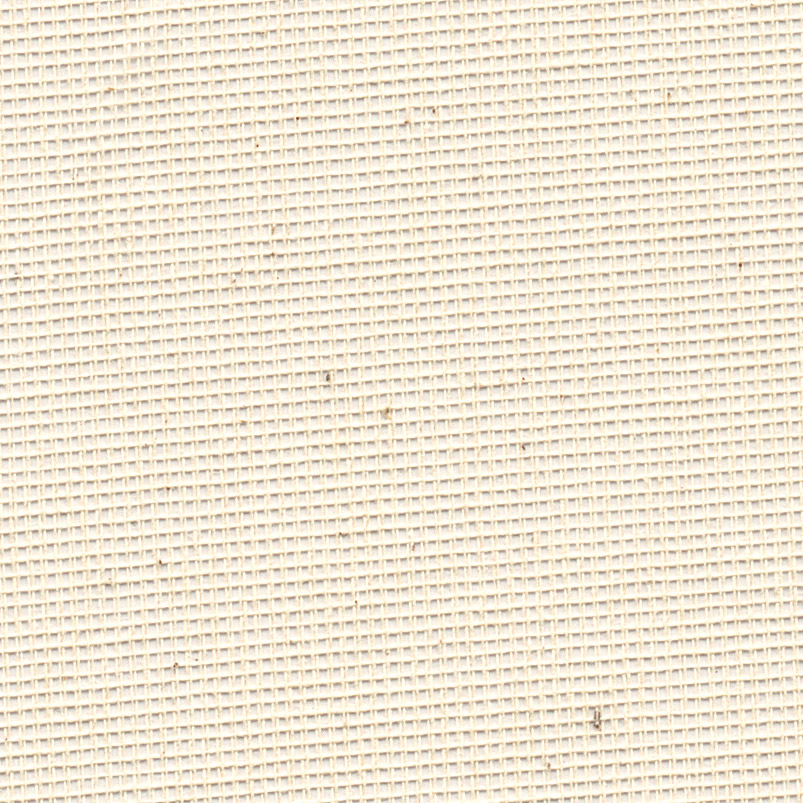

Beta

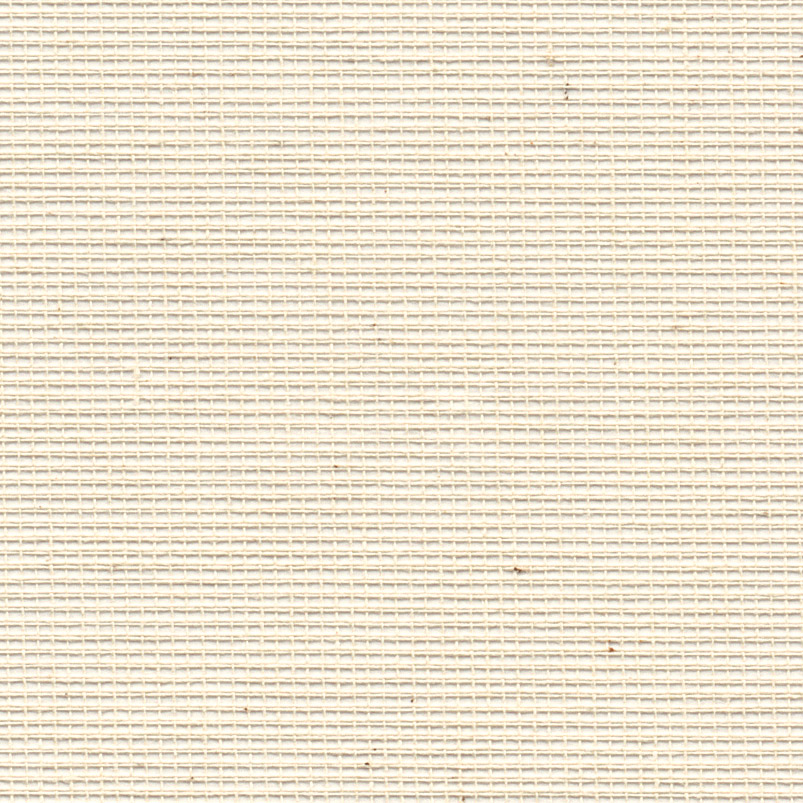

Beta Lined

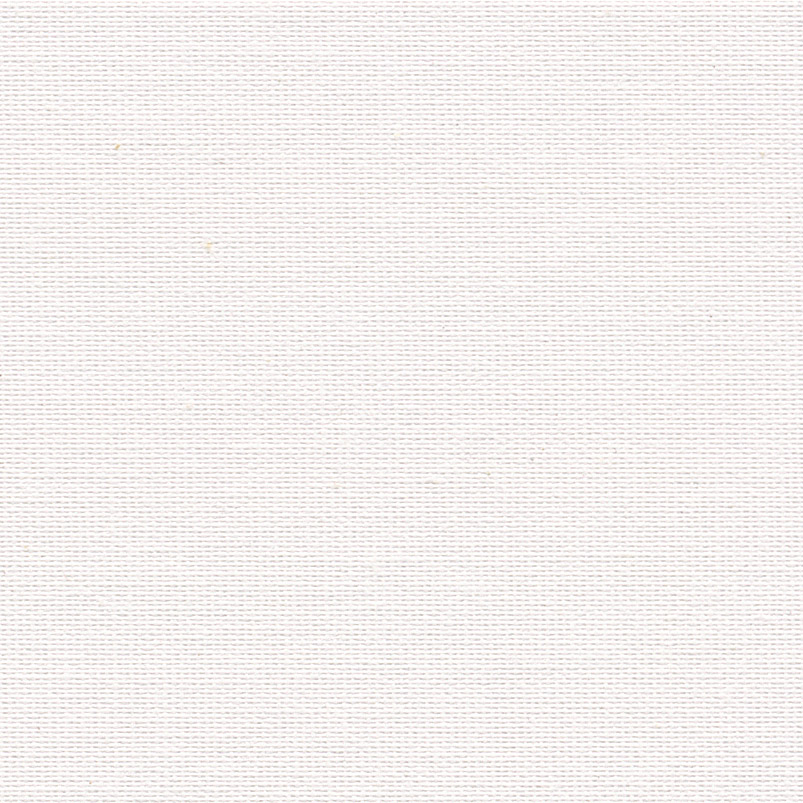

700

708

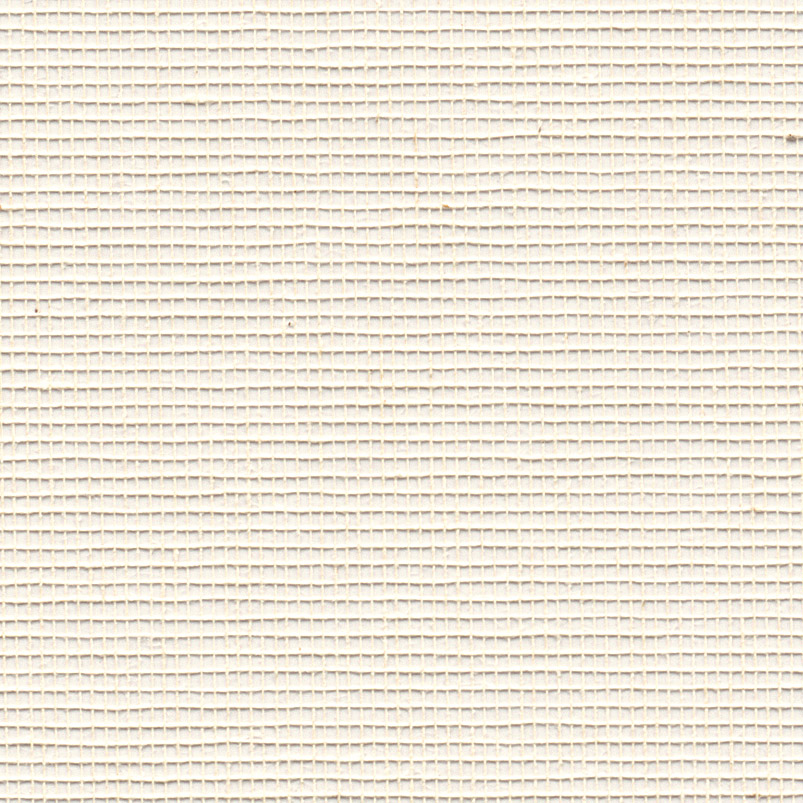

Ypsilon

Ypsilon Lined

Works made with shirting & Gaas by our customers

een-bijzondere-manier-vanheektextiles-spinebackingmaterial (3)

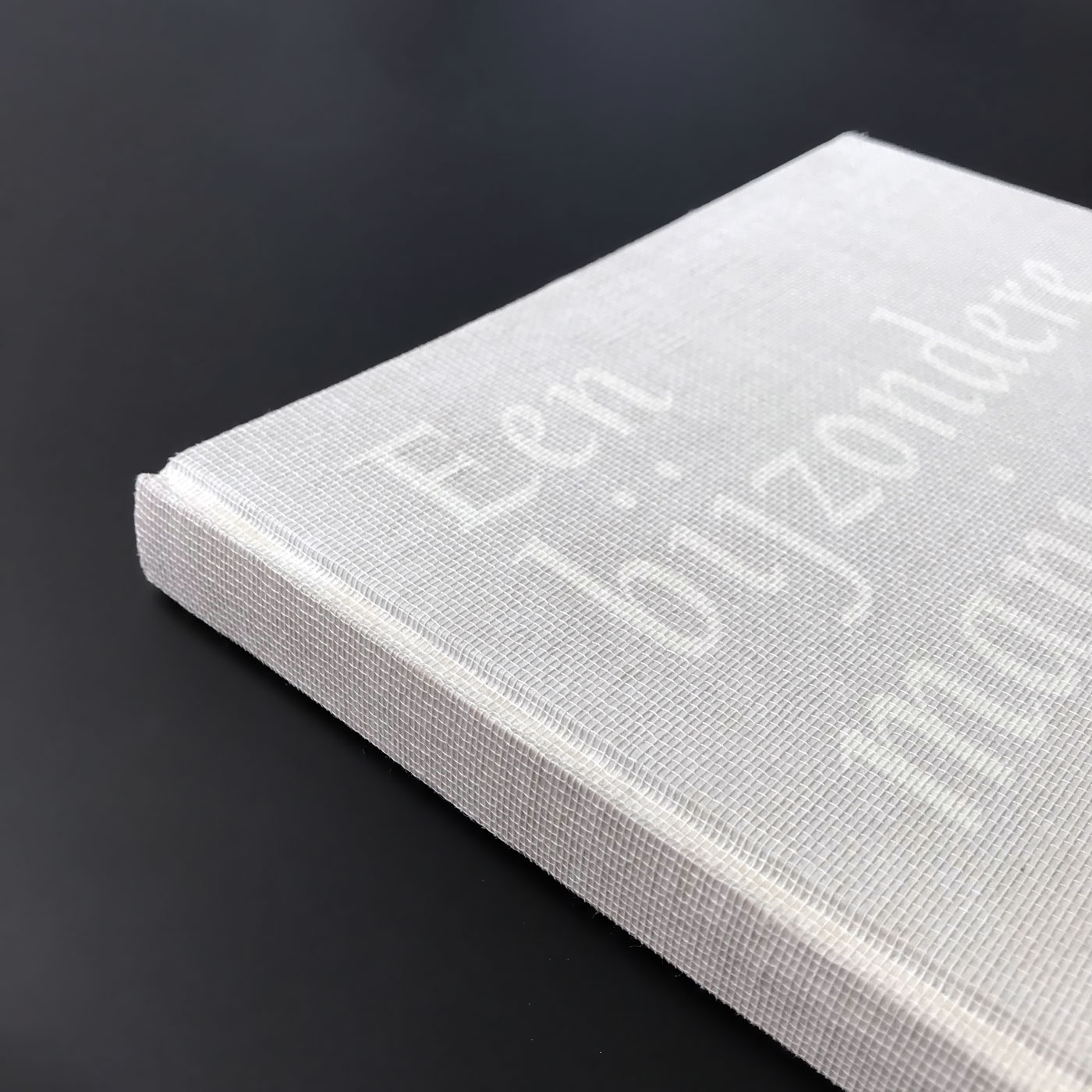

Een bijzondere manier van cuisson geven, maar niet zonder risico

Portfolio 5

Board game up!

Downloads

Technical specifications

Beta

warp

100% cotton

Nm 50
50

weft

100% cotton

weight

g/m² ≈ 70
≈ 70
g/m² ≈ 105
≈ 105

thickness

mm ≈ 0.34
≈ 0.34
mm ≈ 0.36
≈ 0.36

backing paper (FSCâ„¢ certified)

acid free paper, 100% recycled

g/m² ≈ 30
≈ 30

roll length

100

roll width

cm 100
100

usable width unlined

cm 100
100

usable width lined

cm 98
98

Ypsilon

warp

100% cotton

weft

100% cotton

weight

g/m² ≈ 38
≈ 38
g/m² ≈ 78
≈ 78

thickness

mm ≈ 0.33
≈ 0.33
mm ≈ 0.35
≈ 0.35

backing paper (FSCâ„¢ certified)

acid free paper, 100% recycled

g/m² ≈ 30
≈ 30

roll length

100

roll width

cm 138
138

usable width

cm 138
138

Shirting

warp

100% cotton

Nm 50
50

weft

100% cotton

Nm 50
50

weight

g/m² ≈ 180
≈ 180

thickness

mm ≈ 0.23
≈ 0.23

-

roll length

100

roll width

cm 114
114

usable width unlined

cm 110
110

usable width lined
